Alienware's New Laptop For Gamers
Laptops for game is really amazing and with great style in out looking with great internal power.
Alienware releases two new laptops for gamers, the Area-51 m5550 and Sentia m3450. The Area-51 m5550 is powered by an Intel 2.16GHz dual core processor, 15 Inch LCD screen which has a maximum resolution of 1920 x 1200 pixels, and 256MB Nvidia GeForce Go 7600 chip. This laptop is also has a large HDD capacity. It uses 100GB HDD which is enough to store all your favourite games. The next laptop is Sentia m3450. It uses a powerful Intel 2.16 GHz dual core processor, but its graphics aren’t as strong as Area-51 m5550 since it is only use the integrated Intel Media Accelerator 950 Graphics. Prices is £900 for the Area-51 m5550 and £750 for the Sentia

Friday, July 17, 2009

Dopod U1000 - Mini Notebook

U1000 is the next generation communication device. It is the world first 3.5G HSDPA capable Windows Mobile mini tablet. Coming with Quadband GSM, Triband WCDMA, HSDPA and high-speed WiFi (802.11g) support, the U1000 is the device to carry if you need to stay connected at all times. With its 5” LCD touch screen, magnetic attached QWERTY keyboard, light weight design, long battery life and its photo navigation system, it became one of the most mobility and most user friendly mini tablet.

Highlights

All New Design
- 5" display with VGA resolution encased in Graphite Silver casing
- Magnetic detachable keyboard
1-Button Internet Access
- 3.5G HSDPA high-speed Internet connection
- Built-in high speed 802.11b/g WiFi connection
QuickGPS
- Built-in SiRFStar III GPS antenna
- Fast & accurate mapping with built-in Quick GPS, reduces GPS mapping duration
Mobile Phone system
- Smart dial, faster way to brows your contact list
- Cellular phone/Video Communication/Text messaging
Mobile Email with Push Mail
- Supports Microsoft Direct Push solution
- Send and receive email on the move

Opera Mobile Browser
- Direct access via hot-key
- Allows for tabbed browsing
- View web page in horizontal or vertical mode
- Zoom in or out from 25-200%

VueFLO Motion Sensor
- Opera Mobile/IE mobile browser
- Browse web pages with VueFLO motion sensor in IE Mobile or Opera Mobile
Voice Commander
- Hands free communication
- Preset voice command dialing
- Voice command activate e-mail, text message and personal calendar
Audio Recorder
- Record and sending audio file through e-mail and MMS messenger
- Personal ring tone recording
Mobile Office
- 300 hours standby time
- Access Word/Excel/PowerPoint/PDF Documents
- Receive and send emails anytime, never miss important business opportunities
8GB Hard Disk
- High capacity hard disk
- Fast deleting and formatting allowed
Camera
- 3 Mega pixel camera
- 9 Picture taking methods
- White balance (automatic/daylight/night-shoot/tungsten light/fluorescent light) / Special effects (black & white/sepia/cold color/negative)
Roaming the World
- Preset with many countries internet setting by auto detecting SIM card
- Pocket MSN, keeps connection with friends and the world
VGA/TV out
- Easy connectivity to projector, simplify presentation on the go
- External connection to digital television

SPESIFICATION

Operating system

Windows Mobile® 5.0 for Pocket PC Phone Edition

Display

5”display 640x480 VGA resolution 65K colors (effective) TFT LCD

CPU

Intel PXA270 624 MHz with Ati Graphic Chip W2284
Baseband: Qualcomm MSM 6275

Memory

ROM 256MB/ RAM 128MB/ 8G MicroDrive

Dimensions

133.1 mm (L) x 98 mm (W) x 16 mm (T)

Battery

2200 mAh

Weight

375g(With battery and Magnetic Qwerty keypad)

GPS System

SiRF III High sensitivity hidden antenna

RF

HSDPA/UMTS(2100 MHz and 850/1900 MHz)
Quadband GSM(850/900/1800/1900)/GPRS/EDGE

Connectivity

Supports Bluetooth V2.0/ A2DP/ AVRCP, WiFi802.11b/g
USB 1.1(for charging and data transfer), VGA output (standard)

Digital Camera

(Main) 3 Megapixel CMOS with autofocus
(2nd Camera)0.3 Mega pixel VGA camera mode
LED camera flash

Media Player

Windows Media Player 10 Mobile (music / video)

Supported Audio Formats

WMA/MP3/WAV/MID/AMR/AAC/M4A

Supported Video Formats

WMV/ MP4/ AVI/ SG2/ SDP

Key Functions

Power Button, Voice Activation Button, Communications Management button, Camera Key, Volume Control key, 5-way navigation buttons, Opera Browser/ VueFLOHot key , Ok key, Desktop key
Detachable Qwerty Keypad: talk key, end call key

Standby / Talk Time

Standby time: GSM up to 300 hours
Talk time: (without Backlight) GSM up to 5.5 hours
UMTS: up to 4.5 hours
(Standby/ Talk time varies)
WMA audio format playback: 12 hours
WMV video format playback: 8 hours

Expansion

MiniSD slot (Up to 4GB; supports SDHC)

Bundled Applications

Outlook Mobile
Mobile e-mail with Direct Push Mail
Internet Explorer Mobile
Word Mobile
Excel Mobile
PowerPoint Mobile
Windows Media Player 10 Mobile
Pocket MSN
Video Communication
PDF Browser
Zip
Sim Manager
Communications Manager
Streaming Media
Opera Browser
Net Wizard
Voice Commander System
RSS Reader

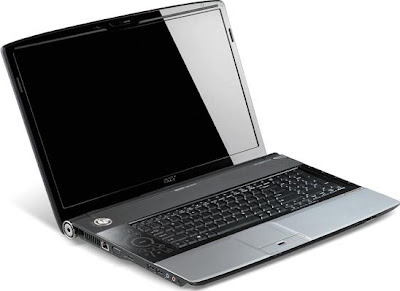

Acer Aspire 6935

Beaming with notebook cinema excellence, the 16" Aspire 6935 enhances high-def digital life with truly immersive audio and captivating video. The 16:9 Acer CineCrystal™ Full HD display with 1920 x 1080 pixel resolution, and Acer CineSurround audio with optimized 2nd Generation Dolby Home Theater® technology deliver high-def audio and visual delights beyond your wildest expectations -- full HD movies, creative applications and games never looked and sounded so good! Adding to the heightened sensory experience is the smooth-to-the-touch CineDash media console, an exciting, CE-like interface for launching and managing entertainment.

Benefits
Eye-catching design, cinema-style 16:9 display
The sophisticated Aspire Gemstone Blue design features multi-layered 3D depth, a shimmering finish, varying textures, a stylish blue-black-silver color scheme, and lighting effects on both the inside and outside. The Aspire 6935 portrays rich color, excellent viewing angles, and 16:9 aspect ratio for a true cinematic view of HDTV and the latest Blu-ray Disc™ content. The wide-aspect 16" Full HD CineCrystal™ display with 16:9 aspect ratio delivers full native widescreen resolution – 14 percent more viewing space than 15.4", 16:10 displays! Enjoy visually enhanced, Full HD entertainment the way it was meant to be played, as perfect as the original creation
Brilliant performance
Backed by today's most powerful processing technology, you can rest assured that the Aspire 6935 handles the heaviest multitasking with reliable precision. Creative multimedia applications run fast and smooth as do intense graphics from the latest games and movies. The NVIDIA® GeForce® 9600M GT discrete graphics card with NVIDIA® PureVideo™ renders 1080p-quality visuals with astounding clarity. The Aspire 6935 is fully prepared for the Full HD sharpness delivered by the Blu-ray Disc™/DVD-Super Multi double-layer drive and the HDTV-ready TV-tuner. Are you?


SPECIFICATION

Operating System
Processor & Chipset
  • Intel® Centrino®2 processor technology, featuring:
  • Intel® Core™2 Duo processor with up to 6 MB L2 Cache, supporting Intel® 64 architecture
  • Mobile Intel® PM45 Express Chipset or,
    Mobile Intel® GM45 Express Chipset
  • Intel® Wireless WiFi Link 5100/5300 (dual-band quad-mode 802.11a/b/g/Draft-N) Wi-Fi CERTIFIED® network connection, featuring MIMO technology, supporting Acer SignalUp™ with Nplify™ wireless technology
  • Intel® Wireless WiFi Link 5150/5350 Wi-Fi®/WiMAX™ dual-mode module, supporting Acer SignalUp™ with Nplify™ wireless technology
Memory
  • DDR2 memory, upgradeable to 4 GB using dual soDIMM modules
  • Intel® Turbo Memory supported
    (manufacturing option)
HDD
  • One S-ATA hard disc drive
Storage
  • 2X Blu-ray Disc™*/DVD-Super Multi double-layer drive or
    (* on models with dedicated graphics only!)
  • 8X DVD-Super Multi double-layer drive
  • 6-in-1 card reader, supporting Secure Digital™ (SD), MultiMediaCard (MMC), MultiMediaCard Plus (MMCplus™), Memory Stick® (MS), Memory Stick PRO™ (MS PRO), xD-Picture Card™ (xD)
Display
  • 16" WUXGA Full HD 1920 x 1080 pixel resolution, high-brightness (250-nit), Acer CineCrystal™ TFT LCD, supporting simultaneous multi-window viewing via Acer GridVista™
  • 16" WXGA HD 1366 x 768 pixel resolution, high-brightness (220-nit), Acer CineCrystal™ TFT LCD, supporting simultaneous multi-window viewing via Acer GridVista™
  • 16.7 million colours
  • 16:9 aspect ratio
  • 8 ms high-def response time
  • 60% color gamut
Graphics
  • NVIDIA® GeForce® 9600M GT with up to 2303 MB of TurboCache™ (512 MB of dedicated GDDR3 VRAM, up to 1791 MB of shared system memory*), supporting NVIDIA® PureVideo™ HD technology, OpenEXR High Dynamic-Range (HDR) technology, Shader Model 4.0, Microsoft® DirectX® 10
    (* depending on size of system memory)
  • Mobile Intel® GM45 Express Chipset with integrated 3D graphics, featuring Intel® Graphics Media Accelerator X4500 (Intel® GMA X4500) with up to 358/384 MB of Intel® Dynamic Video Memory Technology 4.0 (8 MB of dedicated system memory, up to 350/376 MB of shared system memory*), supporting Microsoft® DirectX® 10
    (* depending on size of system memory)
  • DualView™ support
  • MEPG-2/DVD acceleration, decoding
  • WMV9 (VC-1) and H.264 (AVC) decoding
  • HDMI™ (High-Definition Multimedia Interface) with HDCP (High-bandwidth Digital Content Protection) support
  • Acer Arcade™ Deluxe featuring Acer CinemaVision™ and Acer ClearVision™ technologies
Multimedia
  • Optimized 2nd Generation Dolby Home Theater® audio enhancement, featuring Dolby® Digital, Dolby® Digital Live, Dolby® Pro Logic® IIx, Dolby® Headphone, Dolby® Natural Bass and Dolby® Sound Space Expander technologies
  • Two built-in stereo speakers and one Acer Tuba CineBass booster supporting low-frequency effects
  • True5.1-channel surround sound output
  • Digital( DVB-T) TV-tuner supporting hardware MPEG-2 stream encoding and DVB-T (Digital Video Broadcasting-Terrestrial) standard (6 to 8 MHz)
    (manufacturing option)
  • High-definition audio support
  • S/PDIF (Sony/Philips Digital Interface) support for digital speakers
  • MS-Sound compatible
  • Acer PureZone technology with two built-in stereo microphones featuring beam forming, echo cancellation, and noise suppression technologies
Communication
  • Acer Video Conference featuring integrated Acer Crystal Eye webcam, supporting enhanced Acer PrimaLite™ technology
  • Acer Video Conference Manager software featuring Video Quality Enhancement (VQE) technology with H.264 video compression, supporting 640 x 480 resolution online video calls with drag-and-drop Picture-in-Picture (PIP) interactivity
  • Acer PureZone technology
  • Optional Acer Xpress VoIP phone
  • Intel® Wireless WiFi Link 5100/5300 (dual-band quad-mode 802.11a/b/g/Draft-N) Wi-Fi CERTIFIED® network connection, featuring MIMO technology, supporting Acer SignalUp™ with Nplify™ wireless technology, or
  • Intel® Wireless WiFi Link 5150/5350 Wi-Fi®/WiMAX™ dual-mode module, featuring:
    •Wi-Fi® (dual-band quad-mode 802.11a/b/g/Draft-N) Wi-Fi CERTIFIED® network connection, featuring 1x2 or 3x3 MIMO technology, supporting Acer SignalUp™ with Nplify™ wireless technology, or
    •WiMAX™* (single-band 802.16e/2.5G ) WiMAX Forum Certified™ WAN (Wide Area Network) connection, featuring Mobile WiMAX™ and MIMO technology, supporting Acer SignalUp™ with Nplify™ wireless technology
    (* depending on network readiness)
  • 56K ITU V.92 modem with PTT approval; Wake-on-Ring ready
  • Gigabit Ethernet; Wake-on-LAN ready
  • Bluetooth® 2.0+EDR (Enhanced Data Rate)
    (manufacturing option)
I/O Interface
  • 1x ExpressCard™/54 slot
  • 6-in-1 card reader (SD™, MMC, MMCplus™, MS, MS PRO, xD)
  • 4x USB 2.0 ports
    (1x USB 2.0 port combined with eSATA port)
  • 1x HDMI™ port with HDCP support
  • 1x Consumer infrared (CIR) port
  • 1x external display (VGA) port
  • 1 x RF-in jack
    (on models with TV Tuner only!)
  • 1x Headphones/speaker/line-out jack with S/PDIF support
  • 1x Microphone-in jack
  • 1x Line-in jack
  • 1x Modem (RJ-11) port
  • 1x Ethernet (RJ-45) port
  • 1x DC-in jack for AC adapter
Security
  • Acer Bio-Protection fingerprint solution, featuring Windows® log on, computer protection, FingerLaunch, ProfileLaunch, MusicLaunch, password bank, MyLaunch, Acer FingerNav
  • Slot for Kensington lock
  • BIOS user, supervisor, HDD passwords
Power Supply & Battery
  • ACPI 3.0 CPU power management standard: supports Standby and Hibernation power-saving modes
  • 71 W (8-cell) or 48.8 W (6-cell) Li-ion battery pack
  • Up to 3.2-hour battery life with 8 cell battery and dedicated graphics
  • Acer QuicCharge™ technology:
    • 80% charge in 1 hour
    • 2-hour rapid charge system-off
    • 3-hour charge-in-use
  • 90 W AC adapter
  • Energy Star 4.0-certified
Keyboard & Special Controls
  • 88/89-key keyboard with inverted "T" cursor layout, 2.5 mm (minimum) key travel
  • Touchpad pointing device with Acer Bio-Protection fingerprint reader, featuring Acer FingerNav 4-way control function
  • 12 function keys, four cursor keys, two Windows® keys, hotkey controls, embedded numeric keypad, international language support, independent US and Euro dollar sign keys
  • Empowering Key
  • Easy-launch buttons: WLAN, Internet, email, Bluetooth®*
    (manufacturing option)
  • Acer CineDash media console capacitive human interface device, including:
    • Acer Arcade™
    • Volume meter (volume up/down)
    • Menu navigation (enter/back/left/right)
    • Media control (play/pause, stop, previous, next, fast forward, rewind)
    • Mute and hold keys
Weight & Dimensions
  • 385 (W) x 275 (D) x 43.6/39.3 (H) mm (15.13 x 10.81 x 1.71/1.55 inches)
  • 3.5 kg (7.28 lbs.)
Quality & Reliability Tests
  • Temperature & humidity test
  • Free drop test
  • Acoustics test
  • Weight and Pressure tests
  • Spillage test
  • Shock and Vibration tests
  • Electrostatic discharge immunity test
  • MTBF (Mean Time Between Failure) test
  • Hinge life test
  • Keyboard-switch life test
Software
  • Acer Empowering Technology (Acer ePower, eAudio, eDataSecurity, eRecovery, eSettings Management)
  • Acer Arcade™ Deluxe featuring Cinema, Album, Music, Acer HomeMedia
  • Acer InstantOn Arcade
  • Acer Bio-Protection
  • Acer Crystal Eye
  • Acer GridVista™
  • Acer Launch Manager
  • Acer GameZone
  • Acer Video Conference Manager featuring Video Quality Enhancement (VQE)
  • McAfee Internet Security Suite 60-day trial version
  • Adobe® Reader®
  • CyberLink® PowerDirector® trial version
  • NTI Media Maker™
  • Microsoft® Works 8.5 with Office Home and Student 2007 Trial
Options
  • Acer Xpress VoIP phone and Acer Video Conference Manager pack
  • Acer Media Center remote control
  • Memory expansion modules
  • Additional battery
  • Additional AC adapter
  • External USB floppy disk drive
Warranty
  • One-year International Travellers Warranty (ITW)

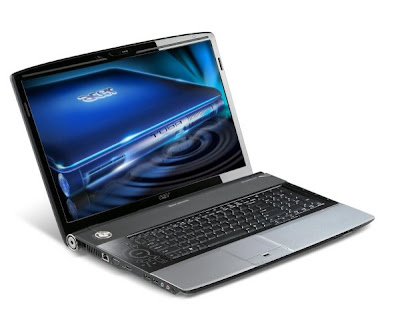

Acer Aspire 8920

The new Acer Aspire 8920 is the first- in- market 18.4" widescreen notebook with FULL HD 1920*1080 resolution designed to immerse the most advanced home entertainment users into the new Gemstone blue concept. Featuring the stunning Acer CineCrystal™ Full HD display with a cinematic 16:9 aspect ratio, which is the golden viewing ratio for movies and removes the black bars on the top and bottom of the screen. The Acer Aspire 8920 will deliver the best HD quality ever seen before. It will put you in control of all your entertainment just by a simple touch on the CineDash sensitive media console which will allow you to adjust the true 5.1 surround sound volume, navigate menus and control all your media on the fly.

Benefits
Distinctive style and power
Acer's latest creation has an individual and incredibly unique design. The new Aspire 8920 is breaking away from the classic mobile design by expressing all the performance, power and control with a whole new reference, the Gemstone Blue design. Open up a whole new world of possibilities with the latest Intel® Core™ 2 Duo processor technology in combination with either NVIDIA GeForce 9650M GS or NVIDIA GeForce 9500M GS: Mobile power has never been so desirable.
Unique entertainment experience
The Aspire 8920 is the world's first notebook to feature built-in multi-speaker True5.1 surround sound through six speakers. In combination with the revolutionary Acer Tuba CineBass subwoofer and the 18,4" Full HD CineCrystal LCD panel it is the ideal choice for Full HD movies and gaming. The CineDash media console, a touch-sensitive interface will allow you to manage your entertainment and launch Acer Arcade to enjoy all your pictures, Blu-ray Disc™ movies or media stored on the generous HDDs of the Aspire 8920. The optional VoIP Bluetooth phone in combination with Acer's CrystalEye camera will guarantee real-time videoconferencing without compromising on performance.

SPECIFICATION

Operating System
Processor & Chipset
  • Intel® Centrino® processor technology, featuring:
  • Intel® Core™ 2 Duo processor with up to 6 MB L2 Cache, supporting Intel® 64 architecture
  • Mobile Intel® PM965 Express Chipset
  • Intel® Wireless WiFi Link 4965AGN (dual-band quad-mode 802.11a/b/g/Draft-N) network connection, supporting Acer SignalUp™ with InviLink™ Nplify™ wireless technology or
    Intel® PRO/Wireless 3945ABG (dual-band tri-mode 802.11a/b/g) Wi-Fi CERTIFIED® network connection, supporting Acer SignalUp™ wireless technology
Memory
  • DDR2 memory, upgradeable to 4 GB using dual soDIMM modules
    * A 64-bit operating system is required to enjoy the ultimate performance of 4 GB memory.
  • Intel® Turbo Memory supported
    (manufacturing option)
HDD
  • One or two S-ATA hard disc drives
Storage
  • Blu-ray Disc™ (BD)/DVD-Super Multi double-layer drive or
    DVD-Super Multi double-layer drive
  • 6-in-1 card reader, supporting Secure Digital™ (SD), MultiMediaCard (MMC), MultiMediaCard Plus (MMCplus™), Memory Stick® (MS), Memory Stick PRO™ (MS PRO), xD-Picture Card™ (xD)
Display
  • 18.4" Full HD 1920 x 1080 pixel resolution, high-brightness (300-nit), Acer CineCrystal™ TFT LCD, two lamps, supporting simultaneous multi-window viewing via Acer GridVista™
  • 16.7 million colours
  • 16:9 aspect ratio
  • 8 ms high-def response time
  • 90% color gamut
Graphics
  • NVIDIA® GeForce® 9650M GS with up to 1280 MB of TurboCache™ (512 MB of dedicated GDDR3 VRAM, up to 768 MB of shared system memory*), supporting NVIDIA® PureVideo™ HD technology, OpenEXR High Dynamic-Range (HDR) technology, Shader Model 4.0, Microsoft® DirectX® 10
    (* depending on size of system memory)
  • NVIDIA® GeForce® 9500M GS with up to 1280 MB of TurboCache™ (512 MB of dedicated GDDR2 VRAM, up to 768 MB of shared system memory*), supporting NVIDIA® PureVideo™ HD technology, OpenEXR High Dynamic-Range (HDR) technology, Shader Model 4.0, Microsoft® DirectX® 10
    (* depending on size of system memory)
  • DualView™ support
  • MPEG-2/DVD decoding
  • WMV9 (VC-1) and H.264 (AVC) decoding
  • HDMI™ (High-Definition Multimedia Interface) with HDCP (High-bandwidth Digital Content Protection) support
  • Acer Arcade™ Deluxe featuring Acer CinemaVision™ and Acer ClearVision™ technologies
Multimedia
  • Optimized 2nd Generation Dolby Home Theater® audio enhancement, featuring Dolby® Digital, Dolby® Digital Live, Dolby® Pro Logic® IIx, Dolby® Headphone, Dolby® Natural Bass and Dolby® Sound Space Expander technologies
  • Acer CineSurround with five built-in speakers and one Acer Tuba CineBass booster supporting low-frequency effects
  • True5.1-channel surround sound output
  • Digital( DVB-T) TV-tuner supporting hardware MPEG-2 stream encoding and DVB-T (Digital Video Broadcasting-Terrestrial) standard (6 to 8 MHz)
    (manufacturing option)
  • High-definition audio support
  • S/PDIF (Sony/Philips Digital Interface) support for digital speakers
  • MS-Sound compatible
  • Acer PureZone technology with two built-in stereo microphones featuring beam forming, echo cancellation, and noise suppression technologies
Communication
  • Acer Video Conference featuring integrated Acer Crystal Eye webcam, supporting enhanced Acer PrimaLite™ technology
  • Acer Video Conference Manager software featuring Video Quality Enhancement (VQE) technology with H.264 video compression, supporting 640 x 480 resolution online video calls with drag-and-drop Picture-in-Picture (PIP) interactivity
  • Acer PureZone technology
  • Optional Acer Xpress VoIP phone
  • Intel® Wireless WiFi Link 4965AGN (dual-band quad-mode 802.11a/b/g/Draft-N) Wi-Fi CERTIFIED® network connection, supporting Acer SignalUp™ with InviLink™ Nplify™ wireless technology, or
    Intel® PRO/Wireless 3945ABG (dual-band tri-mode 802.11a/b/g) Wi-Fi CERTIFIED® network connection, supporting Acer SignalUp™ wireless technology
  • 56K ITU V.92 modem with PTT approval; Wake-on-Ring ready
  • 10/100/1000Mbps Gigabit Ethernet; Wake-on-LAN ready
  • Bluetooth® 2.0+EDR (Enhanced Data Rate)
    (manufacturing option)
I/O Interface
  • 1x ExpressCard™/54 slot
  • 6-in-1 card reader (SD™, MMC, MMCplus™, MS, MS PRO, xD)
  • 4x USB 2.0 ports
  • 1x HDMI™ port with HDCP support
  • 1x Consumer infrared (CIR) port
  • 1x external display (VGA) port
  • 1 x RF-in jack
    (on models with TV Tuner only!)
  • 1x Headphones/speaker/line-out jack with S/PDIF support
  • 1x Microphone-in jack
  • 1x Line-in jack
  • 1x Modem (RJ-11) port
  • 1x Ethernet (RJ-45) port
  • 1x DC-in jack for AC adapter
Security
  • Acer Bio-Protection fingerprint solution, featuring Windows® log on, computer protection, FingerLaunch, ProfileLaunch, MusicLaunch, password bank, MyLaunch, Acer FingerNav
  • Slot for Kensington lock
  • BIOS user, supervisor, HDD passwords
Power Supply & Battery
  • ACPI 3.0 CPU power management standard: supports Standby and Hibernation power-saving modes
  • 71 W (8-cell) Li-ion battery pack
  • Up to 2.5-hour battery life with 8 cell battery
  • Acer QuicCharge™ technology:
    • 80% charge in 1 hour
    • 2-hour rapid charge system-off
    • 3-hour charge-in-use
  • 90 W AC adapter
  • Energy Star 2.0-certified (Environmental Protection Agency level 4)
Keyboard & Special Controls
  • 105-/106-key keyboard with inverted "T" cursor layout, 2.5 mm (minimum) key travel
  • Touchpad pointing device with Acer Bio-Protection fingerprint reader, featuring Acer FingerNav 4-way control function
  • 12 function keys, four cursor keys, two Windows® keys, hotkey controls, standard numeric keypad, international language support, independent US and Euro dollar sign keys
  • Empowering Key
  • Easy-launch buttons: WLAN, Internet, email, Bluetooth®*
    (manufacturing option)
  • Acer CineDash media console capacitive human interface device, including:
    • Acer Arcade™
    • Volume meter (volume up/down)
    • Menu navigation (enter/back/left/right)
    • Media control (play/pause, stop, previous, next, fast forward, rewind)
    • Mute and hold keys
  • Optional Acer Media Center remote control
Weight & Dimensions
  • 441.4 (W) x 300 (D) x 40.2/44.2 (H) mm
    (17.4 x 11.8 x 1.58/1.74 inches)
  • 4.1 kg (9.04 lbs.) with 8-cell battery
Quality & Reliability Tests
  • Temperature & humidity test
  • Free drop test
  • Acoustics test
  • Weight and Pressure tests
  • Spillage test
  • Shock and Vibration tests
  • Electrostatic discharge immunity test
  • MTBF (Mean Time Between Failure) test
  • Hinge life test
  • Keyboard-switch life test
Software
  • Acer Empowering Technology (Acer ePower, eAudio, eDataSecurity, eRecovery, eSettings Management)
  • Acer Arcade™ Deluxe featuring Cinema, Album, Music, Acer HomeMedia
  • Acer InstantOn Arcade
  • Acer Bio-Protection
  • Acer Crystal Eye
  • Acer GridVista™
  • Acer Launch Manager
  • Acer GameZone
  • Acer Video Conference Manager featuring Video Quality Enhancement (VQE)
  • McAfee Internet Security Suite 60-day trial version (or equivalent)
  • Adobe® Reader®
  • CyberLink® PowerDirector® trial version
  • NTI Media Maker™
  • Microsoft® Works 8.5 with Office Home and Student 2007 Trial
Options
  • Acer Xpress VoIP phone and Acer Video Conference Manager pack
  • Acer Media Center remote control
  • Memory expansion modules
  • Additional battery
  • Additional AC adapter
  • External USB floppy disk drive
Warranty
  • One-year International Travellers Warranty (ITW)

Acer Extensa 4630z

Configurations

Linpus™ Linux® , Intel® Pentium® dual-core mobile processor :T4200 (1 MB L2 cache, 2.0GHz, 800 MHz FSB), 14.1" WXGA Acer CrystalBrite TFT LCD Display, Acer InviLink™ Nplify™ 802.11b/g/Draft-N Wi-Fi CERTIFIED® , 1GB DDR2, 160GB HDD, DVD SuperMulti Drive, Bluetooth, 5-in-1 Media Reader, Crystal Eye webcam with Acer PrimaLite™ technology


SPECIFICATION

Operating System
Processor & Chipset
  • Intel® Pentium® dual-core mobile processor, supporting Intel® 64 architecture
  • Mobile Intel® GM45 Express Chipset
Memory
  • DDR2 memory, upgradeable to 4 GB using dual soDIMM modules (dual-channel support)
  • * A 64-bit operating system is required to enjoy the ultimate performance of 4 GB memory.
HDD
  • S-ATA Hard Disk Drive with Acer DASP (Disk Anti-Shock Protection)
Storage
  • DVD-Super Multi Double Layer drive, or
    DVD/CD-RW combo drive
  • 5-in-1 card reader, supporting Secure Digital (SD), MultiMediaCard (MMC), Memory Stick® (MS), Memory Stick PRO™ (MS PRO), xD-Picture Card™ (xD)
Display
  • 14.1" WXGA TFT LCD, 1280 x 800 pixel resolution, supporting simultaneous multi-window viewing via Acer GridVista™
  • 16.7 million colours
Graphics
  • Mobile Intel® GM45 Express Chipset with integrated 3D graphics, featuring Intel® Graphics Media Accelerator X4500 (Intel® GMA X4500) with up to 358 MB of Intel® Dynamic Video Memory Technology 4.0 (8 MB of dedicated system memory, up to 350 MB of shared system memory), supporting Microsoft® DirectX® 10, or
    (*Depending on size of system memory)
  • Mobile Intel® GL40 Express Chipset with integrated 3D graphics, featuring Intel® Graphics Media Accelerator 4500M (Intel® GMA 4500M) with up to 1759 MB of Intel® Dynamic Video Memory Technology 5.0 (64 MB of dedicated video memory, up to 1695 MB of shared system memory), supporting Microsoft® DirectX® 10
  • NVIDIA® GeForce® 9400M GS with up to 2047 MB of TurboCache™ (256 MB of dedicated GDDR2 VRAM, up to 1791 MB of shared system memory), supporting NVIDIA® PureVideo™ HD technology, OpenEXR High Dynamic-Range (HDR) technology, Shader Model 4.0, Microsoft® DirectX® 10
    (*Depending on size of system memory)
  • DualView™ support
  • MPEG-2/DVD hardware assisted capability
  • WMV9 (VC-1) and H.264 (AVC) support (acceleration)
  • HDMI™ (High-Definition Multimedia Interface) with HDCP (High-bandwidth Digital Content Protection) support
Multimedia
  • High Definition Audio support
  • Two built-in Acer 3DSonic stereo speakers
  • MS-Sound compatible
  • Built-in microphone
Communication
  • Acer Video Conference featuring Voice and Video over Internet Protocol (VVoIP) support via Acer CrystalEye webcam and optional Acer Xpress VoIP phone
  • Integrated Acer Crystal Eye webcam, supporting enhanced Acer PrimaLite™ technology
    (manufacturing option)
  • 56K ITU V.92 modem with PTT approval; Wake-on-Ring ready
  • Gigabit Ethernet supporting ASF (Alert Standard Format) 2.0, Wake-on-LAN ready
  • Bluetooth® 2.0+EDR (Enhanced Data Rate)
    (factory option)
I/O Interfaces
  • Acer EasyPort IV connector
  • 1 x ExpressCard™/54 slot
  • 1 x PC Card slot (Type II)
  • 5-in-1 card reader (SD, MMC, MS, MS PRO, xD)
  • Acer Bio-Protection fingerprint reader
  • 4 x USB 2.0
  • 1x HDMI port (on the dedicated graphics version)
  • 1 x External display (VGA) port
  • 1 x Headphones/speaker/line-out jack
  • 1 x Modem (RJ-11) port
  • 1 x Gigabit Ethernet (RJ-45) port
  • 1 x Microphone-in jack
  • 1 x Line-in jack
  • 1 x DC-in jack for AC adapter
Security
  • Acer Bio-Protection fingerprint solution, featuring Pre-Boot Authentication (PBA), computer protection, Acer FingerLaunch and Acer FingerNav
  • Enhanced Acer DASP (Disk Anti-Shock Protection) HDD protection technology
  • Slot for Kensington lock
  • BIOS user and supervisor passwords
Power supply and battery
  • ACPI 3.0 CPU power management standard: supports Standby and Hibernation power-saving modes
  • 48.8W 6-cell Li-ion battery pack, or 79.9W 9-cell Li-ion battery pack
  • Up to 4.3-hour battery life with 9-cell, or
    up to 3-hour battery life with 6-cell
  • Acer QuicCharge™ technology: • 80% charge in 1 hour • 2-hour rapid charge system-off • 3-hour charge-in-use
  • 3-pin 90 W AC adapter
  • Energy Star 4.0
Keyboard & Special Controls
  • 88-/89/93-key keyboard1 with inverted "T" cursor layout, 2.5 mm (minimum) key travel
  • Acer Bio-Protection fingerprint reader1, featuring Acer FingerNav 4-way control function
  • 12 function keys, four cursor keys, two Windows® keys, hotkey controls, embedded numeric keypad, international language support, independent Euro and US dollar sign keys
  • Empowering Key
  • Easy-launch buttons: Internet, email, user-programmable
  • Productivity keys: Lock, Presentation, Sync
  • Two front-access switches: WLAN and Bluetooth®
    (factory option)
Weight and dimensions
  • 338 (W) x 247 (D) x 31/41 (H) mm (13.3 x 9.7 x 1.2/1.6 inches)
  • 2.35 kg (5.17 lbs.) with 6-cell battery pack
    2.51 kg (5.53 lbs.) with 9-cell battery pack
Quality & Reliability Tests
  • Temperature & humidity test
  • Free drop test
  • Acoustics test
  • Weight and pressure test
  • Spillage test
  • Shock and vibration test
  • Electrostatic discharge immunity test
  • MTBF (Mean Time Between Failure) test
  • Hinge life test
  • Keyboard-switch life test
Software
  • Acer Empowering Technology (Acer eNet, ePower, ePresentation, eDataSecurity, eLock, eRecovery, eSettings, ePerformance Management)
  • Acer GridVista™
  • Acer Launch Manager
  • Adobe Reader™
  • Acer Video Conference Manager
    (on models with Acer Xpress VoIP phone)
  • Corel® WinDVD
  • NTI® CD Maker™ / NTI® Shadow™
  • McAfee Internet Security Suite 60-day trial version (or equivalent)
  • Microsoft® Office Ready 2007
Options
  • Acer EasyPort
  • Acer Xpress VoIP phone featuring Acer Video Conference Manager
  • Additional memory modules
  • Additional battery pack
  • Additional AC adapter
  • External USB floppy disk drive
Certifications
  • Wi-Fi®
  • ACPI 3.0
  • Mobile PC 2002
  • DMI 2.0
Warranty
  • One-year International Travelers Warranty (ITW)

Acer TravelMate 6293

Based on Acer’s ProFile design, the TravelMate 6293 emphasizes professional style, ultra mobility combined with personal productivity in a two spindle design. To meet the needs of the advanced mobile professional user it comes complete with all the latest features on the market today: Compact in dimensions with integrated optical device, lightweight and ultra-portable at less than 2kg – it sports a 12.1” white LED backlit LCD panel – powered by latest dual core processor technology, coupled with the responsiveness of DDRIII memory and Serial ATA Hard Disk Drives. The TravelMate 6293 offers desktop PC versatility through the Acer ezDock II, a bottom docking station designed to improve expandability and flexibility. Anywhere connectivity is ensured by a wide array of connectivity options, as in the latest Wireless IEEE 802.11 a/g/n standard.

Benefits
Ultraportability and ultra-long independence
The Acer TravelMate 6293 is designed entirely on Acer’s ambition to optimize the balance between high-performance ultraportability and superior efficiency by creating the lightweight notebook with integrated optical device (two-spindle). Weighing below 2 kgs, the Acer TravelMate 6293 meets the requirements of highly-mobile professionals and dynamic businesses while not compromising on deskbound usage through the Acer ezDock II bottom docking solution for maximum in-house usage.
Superior Style and Security
The TravelMate 6293 comes in line with Acer ProFile design, combined with magnesiumalloy casing cover and state of the art two spindle design in the 12” Ultraportable segment. Personal or company data protection is guaranteed by the integrated Acer biometric Fingerprint solution.


SPECIFICATION

Operating System
Processor & Chipset
  • Intel® Centrino® 2 processor technology, featuring:
  • Intel® Core™2 Duo processor with up to 6 MB L2 cache, supporting Intel® 64 architecture
  • Mobile Intel® GM45 Express Chipset
  • Intel® Wireless WiFi Link 5000 Series (802.11a/g/Draft-N) Wi-Fi CERTIFIED® network connection, featuring MIMO technology, supporting Acer SignalUp™ with Nplify™ wireless technology
Memory
  • DDR3 memory, upgradeable to 4 GB using dual soDIMM modules (dual-channel support)
  • * A 64-bit operating system is required to enjoy the ultimate performance of 4 GB memory.
HDD
  • S-ATA Hard Disk Drive with enhanced Acer DASP (Disk Anti-Shock Protection)
Storage
  • Intel® Turbo Memory supported (on selected models)
  • DVD-Super Multi Double Layer drive
  • 5-in-1 card reader supporting Secure Digital (SD), MultiMediaCard (MMC), Memory Stick® (MS), Memory Stick PRO™ (MS PRO), xD-Picture Card™ (xD)
Display
  • 12.1" WXGA high-brightness TFT LCD with white LED backlight, 1280 x 800 pixel resolution, supporting simultaneous multi-window viewing via Acer GridVista™
  • 16.7 million colours
Graphics
  • Mobile Intel® GM45 Express Chipset with integrated 3D graphics, featuring Intel® Graphics Media Accelerator X4500 (Intel® GMA X4500) with up to 358/384 MB of Intel® Dynamic Video Memory Technology 4.0 (8 MB of dedicated system memory, up to 350/376 MB of shared system memory), supporting Microsoft® DirectX® 10
  • DualView™ support
  • MPEG-2/DVD acceleration
  • WMV9 (VC-1) and H.264 (AVC) acceleration
Multimedia
  • Acer PureZone technology with two built-in stereo microphones featuring beam forming, echo cancellation, and noise suppression technologies
  • High-Definition audio support
  • Two built-in Acer 3DSonic stereo speakers
  • MS-Sound compatible
Communication
  • Acer Video Conference featuring:
    • Integrated Acer Crystal Eye webcam supporting enhanced Acer PrimaLite™ technology
    • Acer Video Conference Manager software featuring Video Quality Enhancement (VQE) technology with H.264 video compression, supporting 640 x 480 resolution online video calls with drag-and-drop Picture-in-Picture (PIP) interactivity
    • Acer PureZone technology
    • Optional Acer Bluetooth® VoIP phone
  • 56K ITU V.92 Modem with PTT approval7, Wake-on-Ring ready
  • Gigabit Ethernet, supporting ASF (Alert Standard Format), Wake-on-LAN ready
  • Intel® Wireless WiFi Link 5000 Series (802.11a/g/Draft-N) Wi-Fi CERTIFIED® network connection, featuring MIMO technology, supporting Acer SignalUp™ with Nplify™ wireless technology
  • Bluetooth® 2.0+EDR (Enhanced Data Rate) (on selected models)
I/O Interfaces
  • 3 x USB 2.0 ports
  • 1 x Fast infrared (FIR) port
  • 1 x External display (VGA) port
  • 1 x Acer Bio-Protection fingerprint reader (on selected models)
  • 1 x PC Card slot (Type II)
  • 5-in-1 card reader (SD™, MMC, MS, MS PRO, xD)
  • 1 x Modem (RJ-11) port
  • 1 x Ethernet (RJ-45) port
  • 1 x Headphones / speaker / line-out jack
  • 1 x Microphone-in jack
  • 1 x Acer ezDock II/ II+ connector (Bottom docker)
  • 1 x DC-in jack for AC adapter
Security
  • Acer Bio-Protection fingerprint solution (on selected models), featuring Pre-Boot Authentication (PBA), computer protection, Acer ProfileLaunch, Acer FingerLaunch, Acer FingerNav
  • Enhanced Acer DASP (Disk Anti-Shock Protection)
  • Slot for Kensington lock
  • BIOS user, supervisor, HDD passwords
  • TravelMate TPM (Trusted Platform Module) solution supporting Acer eDataSecurity Management (on selected models)
Power supply and battery
  • ACPI 3.0 CPU power management standard: supports Standby and Hibernation power-saving modes
  • 58.8 W 4800 mAh 6-cell Li-ion primary battery pack
    79.9 W 7200 mAh 9-cell Li-ion primary battery pack
  • up to 4.5-hour battery life with 6-cell or up to 7-hours battery with 9-cell battery pack
  • 2.5-hour rapid charge system-off
    3.5-hour charge-in-use
  • 3-pin 65W AC adapter
  • Energy Star 4.0
Keyboard & Special Controls
  • Touchpad pointing device with Acer Bio-Protection fingerprint reader (on selected models) featuring Acer FingerNav 4-way control function
  • 88-/89-key Acer FineTouch™ keyboard with inverted "T" cursor layout, 2.5 mm (minimum) key travel
  • 12 function keys, four cursor keys, two Windows® keys, hotkey controls, embedded numeric keypad, international language support, independent US dollar and Euro symbol keys
  • Empowering Key
  • Easy-launch buttons: email, Internet, programmable
  • Productivity keys: Lock, Presentation, Sync
  • Front-access switches: WLAN and Bluetooth®*
    *Active on models with Bluetooth only
Weight and dimensions
  • 306 (W) x 227 (D) x 27.5/36.9 (H) mm (12.05 x 8.94 x 1.08/1.36 inches)
  • 1.95 kg (4.30 lbs.) with 6-cell battery pack
Quality & Reliability Tests
  • Temperature & humidity test
  • Free drop test
  • Acoustics test
  • Weight and pressure test
  • Spillage test
  • Shock and vibration test
  • Electrostatic discharge immunity test
  • MTBF (Mean Time Between Failure) test
  • Hinge life test
  • Keyboard-switch life test
Software
  • Acer Empowering Technology (Acer eDataSecurity, ePower, eRecovery, eSettings Management)
  • Acer Crystal Eye
  • Acer Video Conference Manager
  • Acer Bio-Protection (on selected models)
  • Acer GridVista™
  • Acer Launch Manager
  • Acer Video Conference Manager featuring Video Quality Enhancement (VQE)
  • Adobe Reader™
  • Cyberlink PowerDVD®
  • NTI Media Maker™
  • NTI Shadow™
  • McAfee Internet Security Suite 60-day trial version (or equivalent)
  • Microsoft® Office Ready 2007
Options
  • Acer ezDock II / Acer ezDock II+
    (Bottom docker)
  • Acer Bluetooth® VoIP phone
  • Additional memory modules
  • Additional battery pack
  • Additional AC adapter
  • External USB floppy disk drive
Certifications
  • DMI 2.0
  • ACPI 3.0
  • Mobile PC 2002
  • Wi-Fi®
  • TCG 1.2
  • GS certification
Warranty
  • One-year International Travelers Warranty (ITW)

Acer TravelMate 6493 3G

The TravelMate 6493 with 3G connectivity is ideal for highly mobile users requiring reliable performance and leading security while on the road. Based on the latest dual-core technology, the TravelMate 6493_3G features wide-ranging connectivity options, including cell phone-based 3G or anytime, anywhere connection convenience. A high-resolution 14.1" widescreen and up to 4 GB of system memory give ample performance for demanding business tasks. The TPM-based Acer Bio-Protection fingerprint security solution and enhanced DASP ensure data security, while the Acer Video Conference solution delivers user-friendly on-the-go video conferencing capabilities for exceptional versatility.

Benefits
Enterprising performance
Integrated 3G wireless enables connection wherever there's a 3G signal available, for cost-effective Internet access without needing to set up each new AP. The groundbreaking platform features the latest dual-core processors and built-in Wi-Fi® functionality, delivering convenient, stable high-speed network connectivity. Integrated virtualization technology and advanced manageability standards ensure the Acer TravelMate 6493_3G is a fully-equipped business computer. The Acer TravelMate 6493_3G offers dependable power for demanding office applications and helps to increase business productivity.
Fingertip security
The TravelMate 6493_3G integrates a state-of-the-art Trusted Platform Module (TPM) security solution that reduces security risks and increases reliability by providing secure generation and management of personal cryptographic keys and data. Furthermore, the built-in Acer Bio-Protection fingerprint reader provides Pre-Boot Authentication to approve system or data access using bio-metric identification. To round out the security functions, the TravelMate 6493_3G includes a Smartcard reader and the PlatinumSecret™ software suite is available as an option.
Quality connectivity
The TravelMate 6493 matches leading performance with functional expandability. Support for the Acer ezDock II/II+ suits existing and next-generation peripherals, ensuring maximum efficiency and flexibility. The TravelMate 6493_3G is a complete communication instrument giving users different connectivity options: Wireless networking via 3G or 802.11a/g/Draft-N, built-in Bluetooth® 2.0 module with Enhanced Data Rate for easy connection to your personal area network, wired Gigabit LAN and an integrated modem. For real-time face-to-face video conferencing, the Acer Crystal Eye webcam is mounted on top of the LCD panel. The integrated Acer MediaBay facilitates hot-swapping between modules like a 2nd hard disk drive, an optical drive or weight-saver for greater portability.

SPECIFICATION

Operating System
Processor & Chipset
  • Intel® Centrino® 2 Duo with vPro™ technology, featuring:
  • Intel® Core™2 Duo processor with up to 6 MB L2 cache, supporting Intel® 64 architecture and Intel® Virtualization Technology
  • Mobile Intel® GM45 Express Chipset, supporting Intel® Active Management Technology (Intel® AMT) 4.0
  • Intel® Wireless WiFi Link 5000 Series (dual-band quad-mode 802.11a/g/Draft-N) Wi-Fi CERTIFIED® network connection, featuring MIMO technology, supporting Acer SignalUp™ with Nplify™ wireless technology
Memory
  • DDR3 memory, upgradeable to 4 GB using dual soDIMM modules (dual-channel support)
  • * A 64-bit operating system is required to enjoy the ultimate performance of 4 GB memory.
HDD
  • S-ATA primary Hard Disk Drive with enhanced Acer DASP (Disk Anti-Shock Protection)
Storage
  • Intel® Turbo Memory supported (on selected models)
  • Acer MediaBay hot-swappable 120/160/250/320 GB 2nd hard disk drive
  • Acer MediaBay for hot-swappable optical drive module: DVD-Super Multi Double Layer drive or DVD/CD-RW combo drive
  • 5-in-1 card reader supporting Secure Digital™ (SD), MultiMediaCard (MMC), Memory Stick® (MS), Memory Stick PRO™ (MS PRO), xD-Picture Card™ (xD)
Display
  • 14.1" WXGA high-brightness TFT LCD with white LED backlight, 1280 x 800 pixel resolution, supporting simultaneous multi-window viewing via Acer GridVista™
  • 16.7 million colours
Graphics
  • Mobile Intel® GM45 Express Chipset with integrated 3D graphics, featuring Intel® Graphics Media Accelerator X4500MHD (Intel® GMA X4500) with up to 1759 MB of Intel® Dynamic Video Memory Technology 5.0 (64 MB of dedicated video memory, up to 1695 MB of shared system memory), supporting Microsoft® DirectX® 10
  • DualView™ support
  • MPEG-2/DVD acceleration
  • WMV9 (VC-1) and H.264 (AVC) acceleration
  • DVI-D (true digital video interface) with HDCP (High-bandwidth Digital Content Protection) support
Multimedia
  • High-Definition audio support
  • Two built-in Acer 3DSonic stereo speakers
  • MS-Sound compatible
  • Built-in microphone
Communication
  • 3 / 3.5 G connectivity with Tri-Band*) HSUPA (up to 2 Mbps), HSDPA (up to 7.2 Mbps) or UMTS – Quad-Band*) EDGE, GPRS or circuit switched data where 3G is not covered. Supporting receiver diversity and equalizing.
    *) Tri-Band refers to 850 / 1900 / 2100 (with Rx diversity) MHz - Quad-Band refers to 850 / 900 / 1800 / 1900 MHz
  • Acer Video Conference featuring: Integrated Acer Crystal Eye webcam supporting enhanced Acer PrimaLite™ technology and optional Acer Bluetooth® VoIP phone (on selected models)
  • 56K ITU V.92 modem with PTT approval; Wake-on-Ring ready
  • Gigabit Ethernet, supporting Intel® AMT4.0, Wake-on-LAN ready
  • Intel® Wireless WiFi Link 5000 Series (dual-band quad-mode 802.11a/g/Draft-N) Wi-Fi CERTIFIED® network connection, featuring MIMO technology, supporting Acer SignalUp™ with Nplify™ wireless technology
  • Bluetooth® 2.0+EDR (Enhanced Data Rate) (on selected models)
I/O Interfaces
  • 1 x Acer Bio-Protection fingerprint reader
  • 3 x USB 2.0
  • 1 x Fast infrared (FIR) port
  • 1 x External display (VGA) port
  • 1 x PC Card slot (Type II)
  • 1 x TravelMate SmartCard reader
  • 5-in-1 card reader (SD™, MMC, MS, MS PRO, xD)
  • 1 x DVI-D port with HDCP support
  • 1 x Modem (RJ-11) port
  • 1 x Gigabit Ethernet (RJ-45) port
  • 1 x Headphones/speaker/line-out jack
  • 1 x Microphone-in jack
  • 1 x Acer ezDock II/ II+ connector
  • 1 x DC-in jack for AC adapter
Security
  • Enhanced Acer Disk Anti-Shock Protection (DASP)
  • TravelMate TPM (Trusted Platform Module) solution supporting Acer eDataSecurity Management (on selected models)
  • TravelMate SmartCard solution
  • Acer Bio-Protection fingerprint solution, featuring TPM-based security (on selected models), Pre-Boot Authentication (PBA), computer protection, Acer ProfileLaunch, Acer FingerLaunch, Acer FingerNav
  • BIOS user, supervisor, HDD passwords
  • Slot for Kensington lock
Power supply and battery
  • ACPI 3.0 CPU power management standard: supports Standby and Hibernation power-saving modes
  • 79.9 W 4800 mAh 9-cell Li-ion primary battery pack, or 48.8 W 4400 mAh 6-cell Li-ion primary battery pack
  • 79.9 W 4800 mAh 9-cell Li-ion primary battery pack:
    • 4.3-hour battery life
    • 7.5-hour battery life with Acer MediaBay 6-cell 2nd battery pack
  • 48.8 W 4400 mAh 6-cell Li-ion primary battery pack:
    • 2.5-hour battery life
    • 4.5-hour battery life with Acer MediaBay 6-cell 2nd battery pack
  • 3-pin 65W AC Adapter
  • Energy Star 4.0
Keyboard & Special Controls
  • 88-/89-key Acer FineTouch™ keyboard with 5-degree curve, inverted "T" cursor layout, 2.5 mm (minimum) key travel
  • Dual navigation control, featuring Acer FineTrack™ with two FineTrack™ buttons and touchpad pointing device with 4-way scroll button
  • Acer Bio-Protection fingerprint reader supporting Acer FingerNav 4-way control function
  • 12 function keys, four cursor keys, two Windows® keys, hotkey controls, embedded numeric keypad, international language support, independent US dollar and Euro symbol keys
  • Empowering Key
  • Easy-launch buttons: email, Internet, programmable
  • Productivity keys: Lock, Presentation, Sync
  • Front-access switches: WLAN and Bluetooth® * / 3G
    * Active on models with Bluetooth only
Weight and dimensions
  • 338 (W) x 245 (D) x 33.6/44.5 (H) mm (13.3 x 9.65 x 1.32/1.75 inches)
  • 2.37 kg (5.23 lbs.) with 6-cell battery pack and optical drive
  • 2.48 kg (5.48 lbs.) with 6-cell battery pack and Acer MediaBay 6-cell 2nd battery pack
  • 2.53 kg (5.59 lbs.) with 9-cell battery pack and optical drive
  • 2.63 kg (5.81 lbs.) with 9-cell battery pack and Acer MediaBay 6-cell 2nd battery pack
Quality & Reliability Tests
  • Free drop test
  • Acoustics test
  • Weight and pressure test
  • Spillage test
  • Shock and vibration test
  • Electrostatic discharge immunity test
  • MTBF (Mean Time Between Failure) test
  • Hinge life test
  • Temperature & humidity test
  • Keyboard-switch life test
Software
  • Acer Empowering Technology (Acer eDataSecurity, ePower, eRecovery, eSettings Management)
  • Acer Bio-Protection
  • Acer Crystal Eye (on selected models)
  • Acer GridVista™
  • Acer Launch Manager
  • Adobe® Reader®
  • Cyberlink PowerDVD®
  • NTI Media Maker™
  • NTI Shadow™
  • PlatinumSecret™ suite
  • McAfee Internet Security Suite 60-day trial version (or equivalent)
  • Microsoft® Office Ready 2007
  • Acer 3G Connection Manager
Options
  • Acer ezDock II
  • Acer ezDock II+
  • Additional memory modules
  • Additional battery pack
  • Additional AC adapter
  • Acer Bluetooth® VoIP phone
  • Acer MediaBay 120 / 160 / 250 / 320 GB 2nd hard disk drive module
  • Acer MediaBay 2nd battery pack
  • Weight saver module
  • External USB floppy disk drive
  • Acer SmartCard
Certifications
  • TCG 1.2
  • DMI 2.0
  • ACPI 3.0
  • Mobile PC2002
  • GS certification
  • Wi-Fi®
Warranty
  • One-year International Travelers Warranty (ITW)

Acer TravelMate 6293 3G


Based on Acer’s ProFile design, the TravelMate 6293_3G emphasizes professional style, ultra mobility combined with personal productivity in a two spindle design. To meet the needs of the advanced mobile professional user it comes complete with all the latest features on the market today: Compact in dimensions with integrated optical device, lightweight and ultra-portable at less than 2kg – it sports a 12.1” white LED backlit LCD panel – powered by latest dual core processor technology, coupled with the responsiveness of DDRIII memory and Serial ATA Hard Disk Drives. The TravelMate 6293_3G offers desktop PC versatility through the Acer ezDock II, a bottom docking station designed to improve expandability and flexibility. Anywhere connectivity is ensured by a wide array of connectivity options, like HSDPA/HSUPA, EDGE, Wireless IEEE 802.11 a/g/n standard and more.

Benefits
Always connected
The TravelMate 6293_3G comes with Tri-Band HSUPA, HSDPA or UMTS and Quad-Band EDGE giving you the opportunity to always keep your data updated on the move and always be connected to your network: Anytime – wherever you are. Latest integrated Wireless standard 802.11n, Bluetooth as well as the optional Acer ezDock II gives your flexibility for optimum network connectivity, no matter where you want to work.
Ultraportability and ultra-long independence
The Acer TravelMate 6293_3G is designed entirely on Acer’s ambition to optimize the balance between high-performance ultraportability and superior efficiency by creating the lightweight notebook with integrated optical device (two-spindle). Always connected with HSDPA/HSUPA on the move and full desktop operational via the optional Acer ezDock II bottom docking solution in an office environment, the Acer TravelMate 6293_3G meets the requirements of highly-mobile professionals and dynamic businesses.
Superior Style and Security
The TravelMate 6293_3G comes in line with Acer ProFile design, combined with magnesiumalloy casing cover and state of the art two spindle design in the 12” Ultraportable segment. Personal or company data protection is guaranteed by the integrated Acer biometric Fingerprint solution.


SPECIFICATION

Operating System
Processor & Chipset
  • Intel® Centrino® 2 processor technology, featuring:
  • Intel® Core™2 Duo processor with up to 6MB L2 cache, supporting Intel® 64 architecture
  • Mobile Intel® GM45 Express Chipset
  • Intel® Wireless WiFi Link 5000 Series (802.11a/g/Draft-N) Wi-Fi CERTIFIED® network connection, featuring MIMO technology, supporting Acer SignalUp™ with Nplify™ wireless technology
Memory
  • DDR3 memory, upgradeable to 4 GB using dual soDIMM modules (dual-channel support)
  • * A 64-bit operating system is required to enjoy the ultimate performance of 4 GB memory.
HDD
  • S-ATA Hard Disk Drive with enhanced Acer DASP (Disk Anti-Shock Protection)
Storage
  • Intel® Turbo Memory supported (on selected models)
  • DVD-Super Multi Double Layer drive
  • 5-in-1 card reader supporting Secure Digital (SD), MultiMediaCard (MMC), Memory Stick® (MS), Memory Stick PRO™ (MS PRO), xD-Picture Card™ (xD)
Display
  • 12.1" WXGA high-brightness TFT LCD with white LED backlight, 1280 x 800 pixel resolution, supporting simultaneous multi-window viewing via Acer GridVista™
  • 16.7 million colours
Graphics
  • Mobile Intel® GM45 Express Chipset with integrated 3D graphics, featuring Intel® Graphics Media Accelerator 4500MHD (Intel® GMA 4500MHD) with up to 1759 MB of Intel® Dynamic Video Memory Technology 5.0 (64 MB of dedicated video memory, up to 1695 MB of shared system memory), supporting Microsoft® DirectX® 10
  • DualView™ support
  • MPEG-2/DVD acceleration
  • WMV9 (VC-1)9 and H.264 (AVC) acceleration
Multimedia
  • Acer PureZone technology with two built-in stereo microphones featuring beam forming, echo cancellation, and noise suppression technologies
  • High-Definition audio support
  • Two built-in Acer 3DSonic stereo speakers
  • MS-Sound compatible
Communication
  • 3 / 3.5 G connectivity with Tri-Band*) HSUPA (up to 2 Mbps), HSDPA (up to 7.2 Mbps) or UMTS – Quad-Band*) EDGE, GPRS or circuit switched data where 3G is not covered. Supporting receiver diversity and equalizing.
    *) Tri-Band refers to 850 / 1900 / 2100 (with Rx diversity) MHz - Quad-Band refers to 850 / 900 / 1800 / 1900 MHz
  • Acer Video Conference featuring:
    • Integrated Acer Crystal Eye webcam supporting enhanced Acer PrimaLite™ technology:
    • Acer PureZone technology:
    • Optional Acer Bluetooth® VoIP phone:
  • 56K ITU V.92 Modem with PTT approval, Wake-on-Ring ready
  • Gigabit Ethernet, supporting ASF (Alert Standard Format), Wake-on-LAN ready
  • Intel® Wireless WiFi Link 5000 Series (802.11a/g/Draft-N) Wi-Fi CERTIFIED® network connection, featuring MIMO technology, supporting Acer SignalUp™ with Nplify™ wireless technology
  • Bluetooth® 2.0+EDR (Enhanced Data Rate) (on selected models)
I/O Interfaces
  • 3 x USB 2.0 ports
  • 1 x Fast infrared (FIR) port
  • 1 x External display (VGA) port
  • 1 x Acer Bio-Protection fingerprint reader (on selected models)
  • 1 x PC Card slot (Type II)
  • 5-in-1 card reader (SD™, MMC, MS, MS PRO, xD)
  • 1 x Modem (RJ-11) port
  • 1 x Ethernet (RJ-45) port
  • 1 x Headphones / speaker / line-out jack
  • 1 x Microphone-in jack
  • 1 x Acer ezDock II/ II+ connector (Bottom docker)
  • 1 x DC-in jack for AC adapter
Security
  • Acer Bio-Protection fingerprint solution (on selected models), featuring Pre-Boot Authentication (PBA), computer protection, Acer ProfileLaunch, Acer FingerLaunch, Acer FingerNav
  • Enhanced Acer DASP (Disk Anti-Shock Protection)
  • Slot for Kensington lock
  • BIOS user, supervisor, HDD passwords
  • TravelMate TPM (Trusted Platform Module) solution supporting Acer eDataSecurity Management (on selected models)
Power supply and battery
  • ACPI 3.0 CPU power management standard: supports Standby and Hibernation power-saving modes
  • 79.9 W 7200 mAh 9-cell Li-ion primary battery pack, or
    58.8 W 4800 mAh 6-cell Li-ion primary battery pack
  • up to 4.5-hour battery life with 6-cell or up to 7-hours battery with 9-cell battery pack
  • 2.5-hour rapid charge system-off 3.5-hour charge-in-use
  • 3-pin 65W AC adapter
  • Energy Star 4.0
Keyboard & Special Controls
  • Touchpad pointing device with Acer Bio-Protection fingerprint reader (on selected models) featuring Acer FingerNav 4-way control function
  • 88-/89-key Acer FineTouch™ keyboard with inverted "T" cursor layout, 2.5 mm (minimum) key travel
  • 12 function keys, four cursor keys, two Windows® keys, hotkey controls, embedded numeric keypad, international language support, independent US dollar and Euro symbol keys
  • Empowering Key
  • Easy-launch buttons: email, Internet, programmable
  • Productivity keys: Lock, Presentation, Sync
  • Front-access switches: WLAN and Bluetooth®* / 3G
    * Active on models with Bluetooth only
Weight and dimensions
  • 306 (W) x 227 (D) x 27.5/36.9 (H) mm (12.05 x 8.94 x 1.08/1.36 inches)
  • 1.95 kg (4.30 lbs.) with 6-cell battery pack
Quality & Reliability Tests
  • Temperature & humidity test
  • Free drop test
  • Acoustics test
  • Weight and pressure test
  • Spillage test
  • Shock and vibration test
  • Electrostatic discharge immunity test
  • MTBF (Mean Time Between Failure) test
  • Hinge life test
  • Keyboard-switch life test
Software
  • Acer Empowering Technology (Acer eDataSecurity, ePower, eRecovery, eSettings Management)
  • Acer Crystal Eye
  • Acer Video Conference Manager
  • Acer Bio-Protection (on selected models)
  • Acer GridVista™
  • Acer Launch Manager
  • Acer Video Conference Manager featuring Video Quality Enhancement (VQE)
  • Adobe Reader™
  • Cyberlink PowerDVD®
  • NTI Media Maker™
  • NTI Shadow™
  • McAfee Internet Security Suite 60-day trial version (or equivalent)
  • Microsoft® Office Ready 2007
Options
  • Acer ezDock II / Acer ezDock II+
    (Bottom docker)
  • Acer Bluetooth® VoIP phone
  • Additional memory modules
  • Additional battery pack
  • Additional AC adapter
  • External USB floppy disk drive
Certifications
  • DMI 2.0
  • ACPI 3.0
  • Mobile PC 2002
  • Wi-Fi®
  • TCG 1.2
  • GS certification
Warranty
  • One-year International Travelers Warranty (ITW)

Acer TravelMate 4730

The new Acer TravelMate 4730 is a sophisticated and stylish professional notebook which delivers mobility in any professional environment. The breakthrough TravelMate 4730 boosts on-the-job performance with the powerful dual core processor technology while the combination of the comprehensive 14" widescreen panel and latest wireless standards will allow you to closely monitor your business wherever you are.

Benefits
Stylish and professional portability
Acer's new TravelMate 4730 with its stylish ProFile chassis offers portability and great professional style. Take part of Acer's identity and discover the new powerful and lightweight TravelMate 4730. The magnesium alloy casing of the TravelMate 4730 provides improved rigidity and light weight while the enhanced Acer Disk Anti-Shock Protection (DASP) technology insulates the notebook's hard disk from the inevitable knocks of daily mobile use, securing the highest levels of protection.
Exceptional performance and complete communication
The new TravelMate 4730 supports latest mobile processor technology which empowers exceptional multitasking productivity to keep professionals on the cutting edge. Featuring uncompromized wireless and wired connection combined with Acer SignalUp wireless technology, the new TravelMate 4730 keeps you in sight and in control of your business objectives no matter where you are.

SPECIFICATION

Operating System
Processor & Chipset
  • Intel® Centrino® 2 processor technology, featuring:
  • Intel® Core™2 Duo processor with up to 6 MB L2 Cache, supporting Intel® 64 architecture
  • Mobile Intel® PM45 Express Chipset, or
  • Mobile Intel® GM45 Express Chipset
  • Intel® Wireless WiFi Link 5000 Series (802.11a/g/Draft-N) Wi-Fi CERTIFIED® network connection, featuring MIMO technology, supporting Acer SignalUp™ with Nplify™ wireless technology InviLink™ Nplify™ wireless technology
Memory
  • DDR2 memory, upgradeable to 4 GB using dual soDIMM modules (dual-channel support)
  • * A 64-bit operating system is required to enjoy the ultimate performance of 4 GB memory.
HDD
  • S-ATA Hard Disk Drive with Acer DASP (Disk Anti-Shock Protection)
Storage
  • DVD-Super Multi Double Layer drive, or
    DVD/CD-RW combo drive
  • 5-in-1 card reader, supporting Secure Digital (SD), MultiMediaCard (MMC), Memory Stick® (MS), Memory Stick PRO™ (MS PRO), xD-Picture Card™ (xD)
Display
  • 14.1" WXGA TFT LCD, 1280 x 800 pixel resolution, supporting simultaneous multi-window viewing via Acer GridVista™
  • 16.7 million colours
Graphics
  • Mobile Intel® GM45 Express Chipset with integrated 3D graphics, featuring Intel® Graphics Media Accelerator 4500MHD (Intel® GMA 4500MHD) with up to 1759 MB of Intel® Dynamic Video Memory Technology 5.0 (64 MB of dedicated video memory, up to 1695 MB of shared system memory), supporting Microsoft® DirectX® 10, or
    (*Depending on size of system memory)
  • NVIDIA® GeForce® 9300M GS with up to 2047 MB of TurboCache™ (256 MB of dedicated GDDR2 VRAM, up to 1791 MB of shared system memory), supporting NVIDIA® PureVideo™ HD technology, OpenEXR High Dynamic-Range (HDR) technology, Shader Model 4.0, Microsoft® DirectX® 10
    (*Depending on size of system memory)
  • DualView™ support
  • MPEG-2/DVD hardware assisted capability
  • WMV9 (VC-1) and H.264 (AVC) support (acceleration)
  • HDMI™ (High-Definition Multimedia Interface) with HDCP (High-bandwidth Digital Content Protection) support
Multimedia
  • High Definition Audio support
  • Two built-in Acer 3DSonic stereo speakers
  • MS-Sound compatible
  • Built-in microphone
Communication
  • Acer Video Conference featuring Voice and Video over Internet Protocol (VVoIP) support via Acer CrystalEye webcam and optional Acer Xpress VoIP phone
  • Integrated Acer Crystal Eye webcam, supporting enhanced Acer PrimaLite™ technology
    (manufacturing option)
  • 56K ITU V.92 modem with PTT approval; Wake-on-Ring ready
  • Gigabit Ethernet supporting ASF (Alert Standard Format) 2.0, Wake-on-LAN ready
  • Intel® Wireless WiFi Link 5000 Series (802.11a/g/Draft-N) Wi-Fi CERTIFIED® network connection, featuring MIMO technology, supporting Acer SignalUp™ with Nplify™ wireless technology InviLink™ Nplify™ wireless technology
  • Bluetooth® 2.0+EDR (Enhanced Data Rate)
    (factory option)
I/O Interfaces
  • Acer EasyPort IV connector
  • 1 x ExpressCard™/54 slot
  • 1 x PC Card slot (Type II)
  • 5-in-1 card reader (SD, MMC, MS, MS PRO, xD)
  • Acer Bio-Protection fingerprint reader
  • 3 x USB 2.0
  • 1x HDMI port (on the dedicated graphics version)
  • 1 x External display (VGA) port
  • 1 x Headphones/speaker/line-out jack
  • 1 x Modem (RJ-11) port
  • 1 x Gigabit Ethernet (RJ-45) port
  • 1 x Microphone-in jack
  • 1 x Line-in jack
  • 1 x DC-in jack for AC adapter
Security
  • Acer Bio-Protection fingerprint solution, featuring Pre-Boot Authentication (PBA), computer protection, Acer FingerLaunch and Acer FingerNav
  • Enhanced Acer DASP (Disk Anti-Shock Protection) HDD protection technology
  • Slot for Kensington lock
  • BIOS user and supervisor passwords
Power supply and battery
  • ACPI 3.0 CPU power management standard: supports Standby and Hibernation power-saving modes
  • 48.8W 6-cell Li-ion battery pack, or 79.9W 9-cell Li-ion battery pack
  • Up to 4.3-hour battery life with 9-cell, or
    up to 3-hour battery life with 6-cell
  • Acer QuicCharge™ technology: • 80% charge in 1 hour • 2-hour rapid charge system-off • 3-hour charge-in-use
  • 3-pin 90 W AC adapter
  • Energy Star 4.0
Keyboard & Special Controls
  • 88-/89/93-key keyboard1 with inverted "T" cursor layout, 2.5 mm (minimum) key travel
  • Acer Bio-Protection fingerprint reader1, featuring Acer FingerNav 4-way control function
  • 12 function keys, four cursor keys, two Windows® keys, hotkey controls, embedded numeric keypad, international language support, independent Euro and US dollar sign keys
  • Empowering Key
  • Easy-launch buttons: Internet, email, user-programmable
  • Productivity keys: Lock, Presentation, Sync
  • Two front-access switches: WLAN and Bluetooth®
    (factory option)
Weight and dimensions
  • 338 (W) x 247 (D) x 31/41 (H) mm (13.3 x 9.7 x 1.2/1.6 inches)
  • 2.35 kg (5.17 lbs.) with 6-cell battery pack
    2.51 kg (5.53 lbs.) with 9-cell battery pack
Quality & Reliability Tests
  • Temperature & humidity test
  • Free drop test
  • Acoustics test
  • Weight and pressure test
  • Spillage test
  • Shock and vibration test
  • Electrostatic discharge immunity test
  • MTBF (Mean Time Between Failure) test
  • Hinge life test
  • Keyboard-switch life test
Software
  • Acer Empowering Technology (Acer eNet, ePower, ePresentation, eDataSecurity, eLock, eRecovery, eSettings, ePerformance Management)
  • Acer GridVista™
  • Acer Launch Manager
  • Adobe Reader™
  • Acer Video Conference Manager
    (on models with Acer Xpress VoIP phone)
  • Corel® WinDVD
  • NTI® CD Maker™ / NTI® Shadow™
  • McAfee Internet Security Suite 60-day trial version (or equivalent)
  • Microsoft® Office Ready 2007
Options
  • Acer EasyPort
  • Acer Xpress VoIP phone featuring Acer Video Conference Manager
  • Additional memory modules
  • Additional battery pack
  • Additional AC adapter
  • External USB floppy disk drive
Certifications
  • Wi-Fi®
  • ACPI 3.0
  • Mobile PC 2002
  • DMI 2.0
Warranty
  • One-year International Travelers Warranty (ITW)
