Friday, July 17, 2009

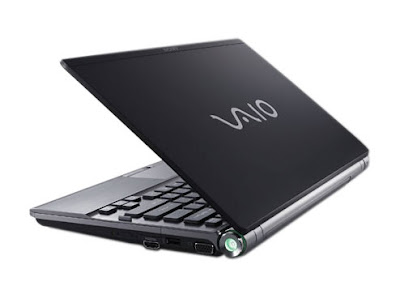

Sony VAIO Z - VGN-Z12GN/B


VAIO Z’s slim, lightweight 13.1" LCD of robust design is perfect for office and mobile use. Dynamic Graphic System provides a speedy graphics mode for the office and a power-efficient mode for mobile use. Robust carbon fibre construction contributes to solid dependability and a premium design.

Features :

13.1 inch VAIO Z (Black)
  • Intel® Core™2 Duo Processor
  • Genuine Windows Vista® Business
  • High Durability & Light Weight: Carbon Body
  • Real Wide 13.1-inch Clear Tough LCD [Rich Colour]
  • DDR3 SDRAM Memory
  • Dynamic Hybrid Graphic System
Specification :


Operating System
Operating System
Genuine Windows Vista® Business (English Version) with Service Pack 1 (Traditional Chinese Language Pack)

Architecture
Processor Name
Intel® Core™2 Duo Processor P8600 (2.40 GHz)*1*2
Chipset
Mobile Intel® GM45 Express Chipset
Processor System Bus
1066 MHz
Memory Bus
1066 MHz
Cache Memory
3 MB

Main Memory
Pre-installed/Max
2 GB DDR3 SDRAM*3*4
SO-DIMM Slots
2 SO-DIMM slots (The pre-installed memory module uses one)

Hard Disk Drive
Hard Disk Drive
250 GB*5 (Serial ATA, 5400 rpm)

Optical Disc Drive
Drive
DVD±RW/±R DL/RAM Drive
Maximum Reading Speed
DVD+R: 8x (SL), 8x (DL)/ DVD-R: 8x (SL), 8x (DL)/ DVD+RW: 8x/DVD-RW: 8x/ DVD-ROM: 8x/DVD-RAM: 5x/ CD-ROM: 24x/CD-R: 24x/CD-RW: 24x
Maximum Writing Speed
DVD+R: 8x (SL), 4x (DL)/ DVD-R: 8x (SL), 4x (DL) DVD+RW: 8x/DVD-RW: 6x/ DVD-RAM: 5x/ CD-R: 24x/CD-RW: 24x

Graphics
Graphics Accelerator
NVIDIA® GeForce® 9300M GS notebook graphics processing unit (GPU) (SPEED MODE) / Mobile Intel® Graphics Media Accelerator 4500MHD (STAMINA MODE)
Dedicated Video Memory
256 MB (SPEED MODE)

Display
Type
13.1" wide (WXGA++: 1600 x 900) TFT colour display (Clear Tough LCD [Rich Colour])

Interface
USB
High Speed USB 2.0 x 2
i.LINK(IEEE 1394)
4 pin (S400) x 1
Network (RJ-45)Connector
10Base-T/100Base-TX / 1000Base-T x 1
Display Output Connector
Analogue RGB, mini D-sub 15 pin x 1
Headphone
Stereo mini jack x 1
Microphone
Stereo mini jack x 1
HDMI In/Out Connector
Output x 1
Modem
V.92 and V.90 Compliant x 1
Memory Stick Slot
Memory Stick (Standard/Duo Size compatible, MagicGate compatible, Memory Stick PRO compatible, High-speed data transfer compatible)*6
SD Memory Card Slot
SD Memory Card*7 (SDHC compatible, MMC compatible)
PC Card Slot
ExpressCard™/34 x 1
Compatible Memory Cards
Memory Stick (Standard/Duo Size compatible, MagicGate compatible, Memory Stick PRO compatible, High-speed data transfer compatible) , SD Memory Card (SDHC compatible) , Multi Media Card
DC IN
x 1
Others
Docking Station Connector x 1

Wireless Connection
Wireless LAN Type
Integrated Wireless LAN IEEE 802.11b/g/Draft n*8
Wireless LAN Data Rate
maximum 11Mbps (802.11b)/54 Mbps (802.11g) 300 Mbps (Draft 802.11n)*9
Wireless LAN Frequency
2.4 GHz (802.11b/g/Draft n)
Bluetooth
Bluetooth standard Ver. 2.0+EDR

Security/Utilities
Fingerprint Sensor
x 1
Security Chip
TCG Ver.1.2 compliant Trusted Platform Module (TPM)

Camera
Front Side Camera
Effective pixels: 640x 480

Audio
Sound Chip
Intel® High Definition Audio compatible , 3D audio (Direct Sound 3D support)
Speaker
Built-in stereo speakers
Microphone
Built-in monaural microphone

Keyboard/Input Device
Keyboard
Approx. 19 mm key pitch/2.5 mm keystroke , 82keys
Touchpad
Intelligent Touchpad

Battery Life
Bundled Battery
VGP-BPS12 Lithium-ion battery: up to 5.5 hours of use
Optional Long Battery
VGP-BPL12 Lithium-ion battery: up to 8.5 hours of use

Size
Dimensions (WxHxD)
314 x 24.5-33.0 x 210 mm
Weight
1.48 kg (including the supplied battery)

Included Software
Video Edit/Playback
VAIO Movie Story 1.2, Adobe® Premiere® Elements® 4, VAIO Edit Components 6.4, WinDVD for VAIO 8.0
DVD Creation
Click to Disc 1.1, Click to Disc Editor 1.1
Music
VAIO MusicBox 2.0, SonicStage Mastering Studio 2.5, SonicStage Mastering Studio Audio Filter 2.5
Still Image/Photo
Windows® Photo Gallery, Picasa™, Adobe® Photoshop® Elements® 6 (Installer)
Home Network
VAIO Media plus 1.0
Word Processor / Spreadsheet
60-Day Trial Version of Microsoft® Office Professional 2007*11
Tool
Roxio Easy Media Creator 10.0, Adobe® Reader® 8, McAfee Internet Security Suite 8.1*12
Utilities
VAIO Control Center 3.0, VAIO Presentation Support 1.0, Infineon TPM Professional Package 3.0 (Installer), Protector Suite QL 5.6, WebCam Companion 2, Magic-i™ Visual Effects
Support
VAIO Recovery Center 1.4, VAIO Update 3.1, VAIO Data Restore Tool 1.0

Supplied Accessories
AC Adaptor
AC Adaptor (VGP-AC19V26)
Battery
Lithium-ion battery (VGP-BPS12)*13
Others
Windows®XP Professional Install Disc

Features and specifications are subject to change without notice.

*1 CPU speed will be reduced under certain operating conditions.
*2 Intel® Virtualization Technology is not supported.
*3 If memory modules of the same capacity are installed to both of the two memory module slots, the supported dual channel mode provides better performance.
*4 A portion of the system memory over 3 GB may not be available to the operating system. Sony does not guarantee compatibility with memories of other brands.
*5 GB means one billion bytes when referring to hard disk drive capacity. Accessible capacity may vary. A portion of hard disk drive space is reserved as a recovery partition.
*6 Compatibility confirmed with Sony branded “Memory Stick” media only.
*7 The copyright protection of the SD Memory Card is not supported.
*8 The maximum communication distance can vary depending on the obstacles or the distance between the communication devices, the radio waves, the operating system or the software being used.
*9 The communication speed varies depending on the distance between communication devices, existence of obstacles between such devices, the device configuration, the radio conditions, and the software in use. In addition, communication may be cut off depending on the radio conditions.
*10 Estimated battery life (under JEITA Battery Run Time Measurement Method ver.1.0,measurement method (a)).
Actual battery life may vary with different operating conditions and settings. For further details, please visit http://www.sony-asia.com/support/vaio/jeita
*11 This software is intended for evaluation purposes only. It must be activated before actual use, and the activation procedures will be detailed during initial launch.
Activation requires Internet access, which enables certain functions included. This software has an expiration date of 60 days from date of first use, at which time the software will operate under reduced-functionality mode, limiting options and operation
*12 Free use of 90 days. Further update will be charged.
*13 This product may only function with a genuine Sony battery designed for this model.


The trademarks, including but not limited to "Sony", "VAIO", "Memory Stick" and "SonicStage" are either trademarks or registered trademarks of Sony Corporation and/or its subsidiaries.
Adobe, Adobe Photoshop, Adobe Reader and Adobe Premiere are trademarks of Adobe Systems Incorporated in the United States and/or other countries.
Celeron, Celeron Inside, Centrino, Centrino Inside, Centrino Logo, Core Inside, Intel, Intel Logo, Intel Core, Intel Inside, Intel Inside Logo, Intel Viiv, Intel vPro, Itanium, Itanium Inside, Pentium, Pentium Inside, Viiv Inside, vPro Inside, Xeon, and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.
Windows, Windows Vista, the Windows logo and Microsoft are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
All other product and brand names may be trademarks or registered trademarks of their respective owners.
Whilst information given is true at time of printing, small production changes in the course of our company's policy of improvement through research and design might not
necessarily be included in the specifications. E&OE. Actual models may differ slightly in appearance to illustrations provided.


Note that you cannot use the following features and software that you could use on Windows Vista® after downgrading to Windows® XP:
- Plug and Display feature
- Instant Mode (on models with Instant Mode only)
- VAIO HDD Protection (on models with a hard disk drive only)
- Sony original audio and visual software
- Non-Sony software (e.g. InterVideo WinDVD, etc.)
- VAIO Recovery Tool
Refer to the Windows® Professional Install Disc User Guide for further details.
